Graphite Design

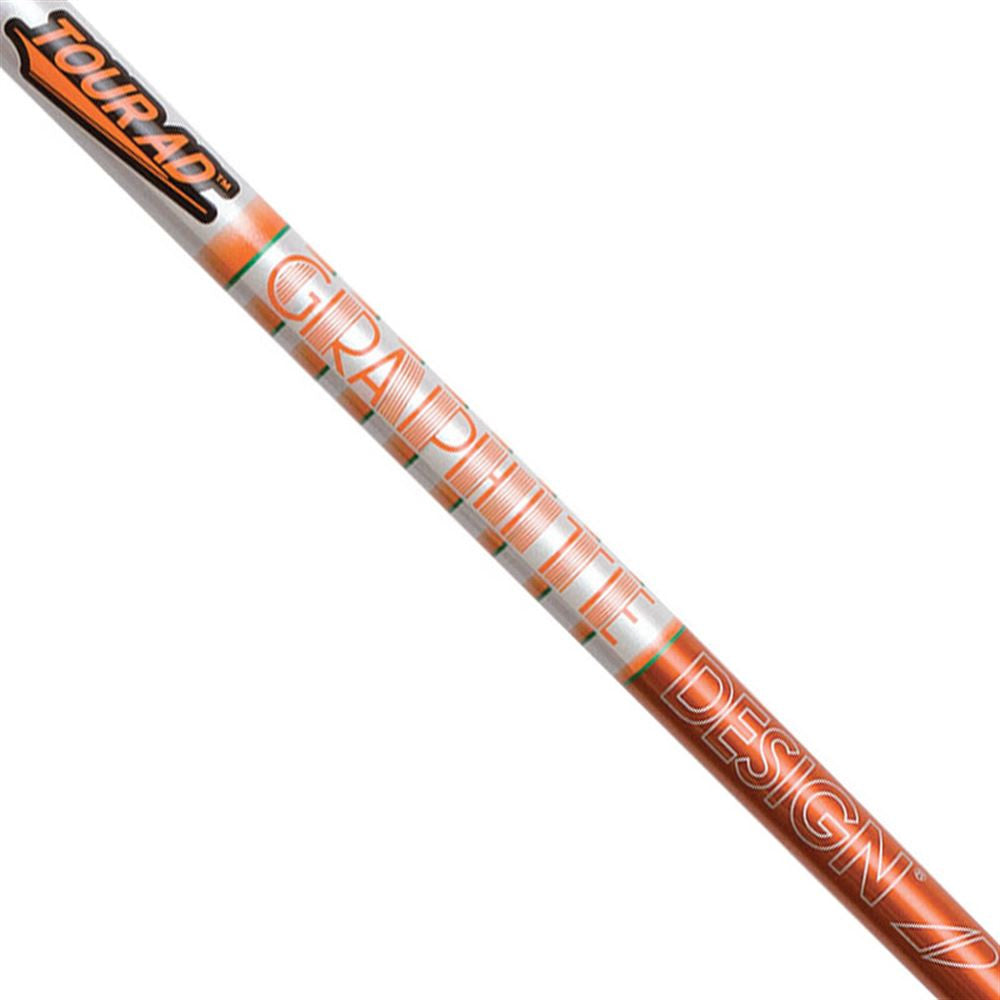

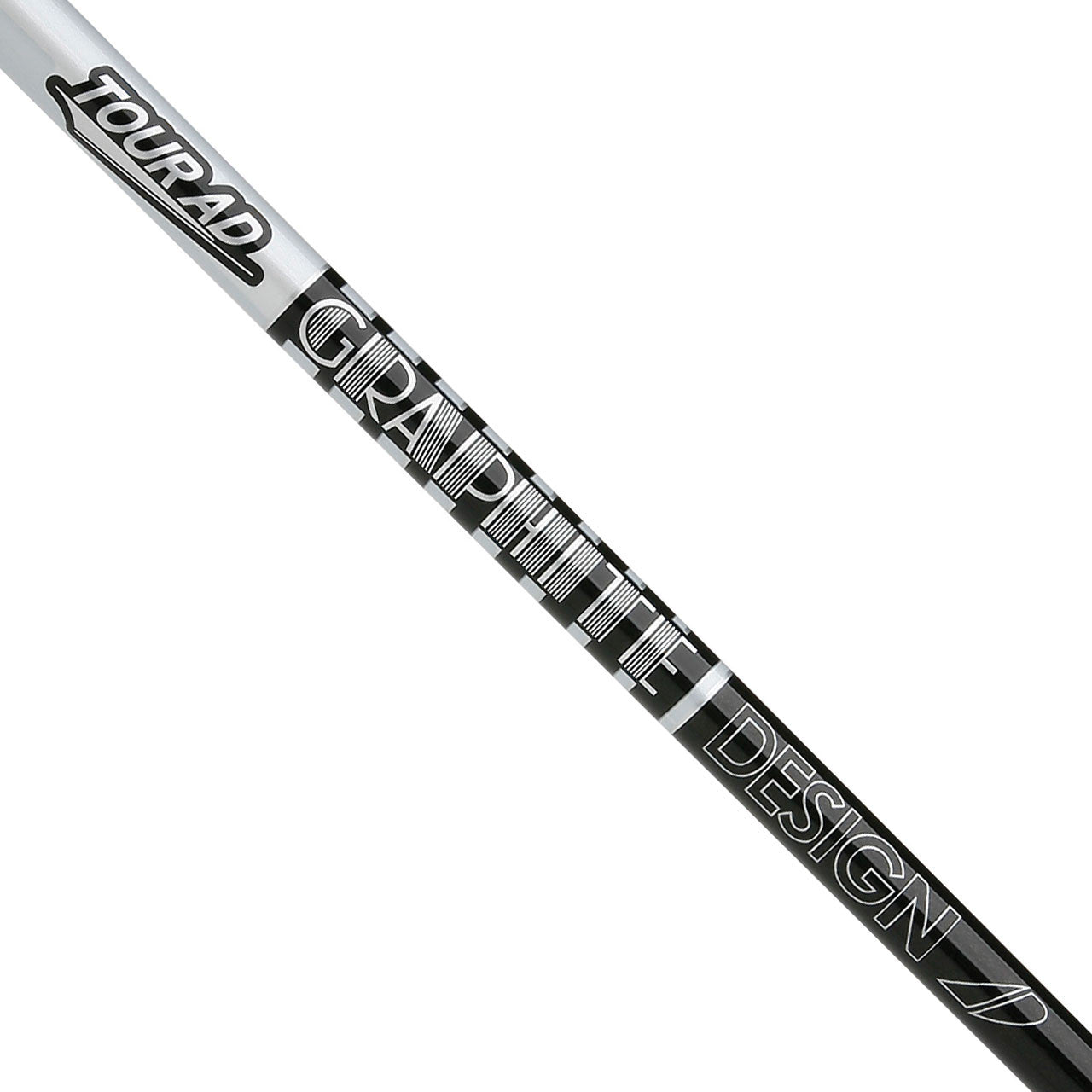

Graphite Design Tour AD DI Driver Shaft
Graphite Design Tour AD DI Driver Shaft
Answer 4 questions — we'll tell you exactly which flex to order.
Please specify your adapter in Builder Notes below.
Shaft will be prepared without grip installation.
Please specify your grip in Builder Notes below.
Full Build: adapter & grip installed. Partial Build: partial assembly — add details in notes. Parts Only: components shipped loose, no assembly.
Unless noted above, shafts will be cut to standard length, will not be tip cut and will be installed logo down, grip up. Include any tip trimming, extra wraps, length matching, or other requests in the field above.
Every shaft is hand-built to your specs by our team.
Couldn't load pickup availability
Product Details
Product Details
Deep Impact. Tour-Proven Performance. Made in Japan.
The Graphite Design Tour AD DI Driver Shaft is engineered to create a "DEEP IMPACT" on your game — and the name says it all. Designed and manufactured exclusively at Graphite Design's factory headquarters in Japan, the Tour AD DI combines revolutionary DI Technology with aerospace-quality 50t carbon fiber materials to deliver a high-launching, low-spin ball flight with exceptional feel and control.
The DI was the first Tour AD shaft to integrate Toray Company's original NANOALLOY material technology in the tip section — now known as DI Technology. This unique material promotes additional shaft stability without sacrificing feel, allowing players to generate greater clubhead speed and ball speed while maintaining precision through impact.
Key Features:
- DI Technology with NANOALLOY Tip: Toray's proprietary material in the tip section promotes stability and speed without loss of feel
- High Launch, Low-Mid Spin: Softer mid-section bend profile loads the shaft properly while a firm tip section promotes high launch and low spin through impact
- 50t Aerospace Carbon Fiber: Premium materials throughout for the highest performing shaft available
- Made in Japan: Graphite Design's hallmark precision manufacturing — validating their "Tour AD" logo's commitment to Accuracy and Distance
- Wide Range of Options: Available in 50g, 60g, 70g, and 80g weight classes across R2, R1, S, X, SR, and TX flexes
Tour AD DI — Flex Guide: Who It's For
| Variant | Weight | Flex | Swing Speed | Tempo | Launch | Spin | Who It's For |
|---|---|---|---|---|---|---|---|
| DI 5 R2 | 54g | R2 (Lite/Senior) | 75–85 mph | Smooth | High | Low-Mid | Slower swing speed players with a smooth tempo who want maximum launch and carry from a lightweight, high-launching shaft. |
| DI 5 R1 | 55g | R1 (Regular) | 80–90 mph | Moderate | High | Low-Mid | Mid-speed players with a moderate tempo seeking a high-launching, lightweight shaft with Tour AD feel and DI stability. |
| DI 5 S | 57g | S (Stiff) | 90–100 mph | Active | High | Low-Mid | Athletic players in the 90-100 mph range who want a high-launching, low-spin profile in a mid-weight stiff shaft. |
| DI 5 X | 60.5g | X (X-Stiff) | 100–110 mph | Aggressive | High | Low | Higher swing speed players with an aggressive tempo who want the DI's high launch in a stiffer, slightly heavier 50g-class shaft. |
| DI 6 SR | 64g | SR (Stiff Regular) | 85–95 mph | Moderate | High | Low-Mid | Players between Regular and Stiff who want a mid-weight option with the DI's high-launch, low-spin profile. |
| DI 6 S | 65g | S (Stiff) | 95–108 mph | Active | High | Low-Mid | The most popular DI configuration — athletic players with faster swing speeds who want Tour-level stability and a high-launching, low-spin ball flight in a mid-weight shaft. |
| DI 6 X | 67g | X (X-Stiff) | 105–115 mph | Aggressive | High | Low | High-speed players with an aggressive transition who need maximum stiffness in the 60g class with the DI's signature high launch. |
| DI 6 TX | 68.5g | TX (Tour X-Stiff) | 115+ mph | Very Aggressive | High | Low | Tour-level or elite amateur players who need the stiffest 60g-class DI configuration for maximum load resistance. |
| DI 7 S | 74g | S (Stiff) | 100–110 mph | Active | Mid-High | Low-Mid | Players who prefer a heavier shaft for added control and stability — ideal for those who want the DI's performance with extra weight for improved tempo consistency. |
| DI 7 X | 75g | X (X-Stiff) | 108–118 mph | Aggressive | Mid-High | Low | High-swing-speed players who want a heavier, stiffer DI for maximum control and tighter dispersion. |
| DI 7 TX | 77g | TX (Tour X-Stiff) | 115+ mph | Very Aggressive | Mid-High | Low | Tour-level players who want the heaviest, stiffest 70g-class DI for maximum stability and load resistance. |
| DI 8 S | 84g | S (Stiff) | 105–115 mph | Active | Mid | Low | Players who want maximum weight for tempo control — the 80g DI delivers the shaft's signature performance in the heaviest configuration. |
| DI 8 X | 85g | X (X-Stiff) | 110–120 mph | Aggressive | Mid | Low | High-speed players who need the heaviest, stiffest DI in the 80g class for ultimate stability. |
| DI 8 TX | 86g | TX (Tour X-Stiff) | 118+ mph | Very Aggressive | Mid | Low | Elite players with extremely fast, powerful swings who demand Tour-spec performance in the heaviest DI configuration. |
| DI 9 X | 97g | X (X-Stiff) | 120+ mph | Very Aggressive | Mid | Low | The heaviest DI available — for elite long drive competitors or players who need maximum weight and stiffness for control at extreme swing speeds. |
Not sure which flex is right for you? Contact us — we'll help you match the right Tour AD DI to your swing speed and tempo.
Shaft Specifications:
- Tip Diameter: .335"
- Parallel Tip Section: 3.0"
- Kick Point: Mid
- Launch: High (50g–70g) / Mid (80g+)
- Spin: Low-Mid (50g–60g) / Low (70g+)
- Torque: 4.7° (R2/R1) → 2.6° (DI 9 X)
- Available Colors: Orange or Black (most flexes); Orange only (TX and 9 X)
Standard Driver Playing Lengths by Adapter
| Adapter Brand | Standard Playing Length |
|---|---|
| Ping G430 | 45.75" |
| Ping G440 | 45.75" |
| TaylorMade | 45.75" |
| Callaway | 45.75" |
| Mizuno | 45.75" |
| Titleist | 45.5" |
| PXG | 45.5" |
| Cobra DS Adapt | 45.5" |
Need a different length? Just let us know your preferred playing length when ordering and we'll cut it to your spec.
